Application of Permanent Magnet Motors in the Paper Industry

Permanent Magnet Synchronous Motors - Solves 42% of Your Power Cost Headaches

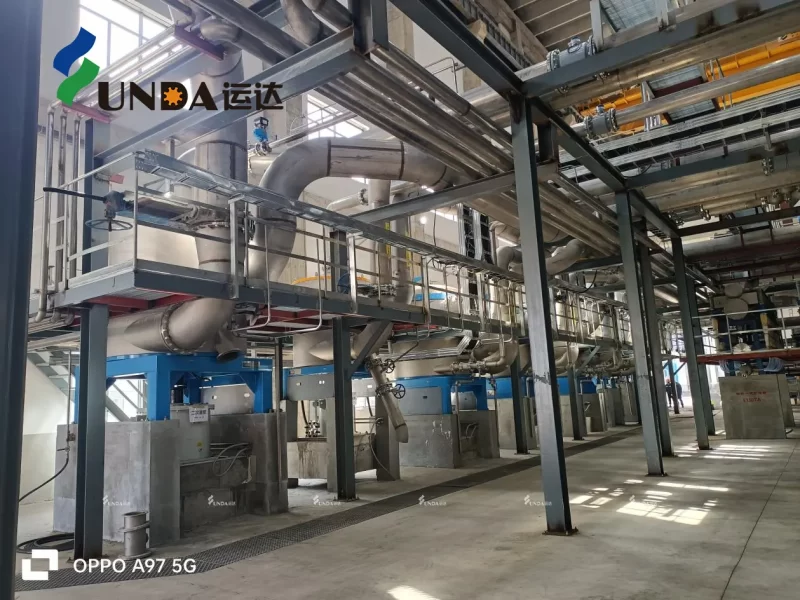

The following figure shows the application scenarios of permanent magnet motors in key areas such as paper machine drives in modern paper mills.

1. Technical Breakthroughs in PMSM Applications

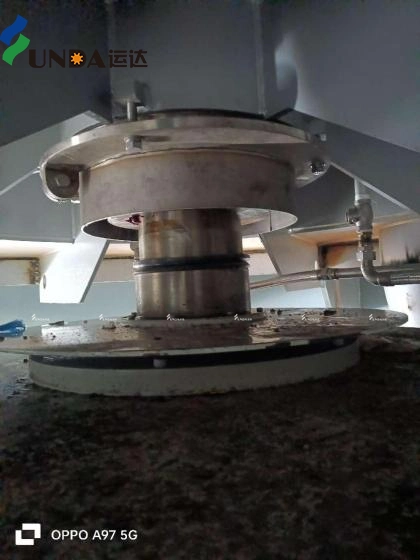

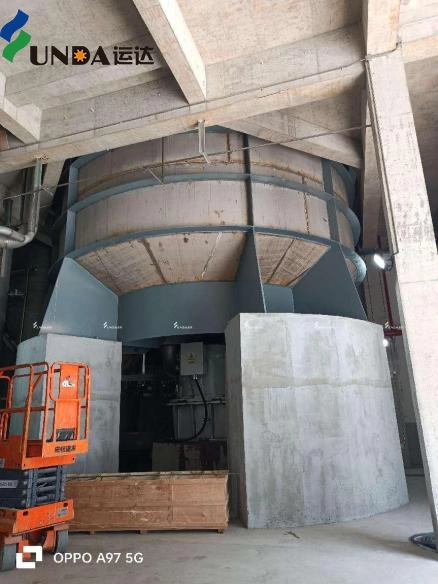

1.1 Key Advantages in Pulper Applications:

1.1.1. Space Optimization

- 40% more compact footprint compared to traditional induction motors

- Enables flexible plant layout redesign for capacity expansion

1.1.2. Direct Drive Efficiency

   - Eliminates belt/gearbox transmission losses (15-20% energy saving)

   - Maintenance-free operation with 100,000+ hours service life

1.1.3. Intelligent Load Adaptation

   - Precise torque control across varying pulp densities

   - 25.4% energy reduction achieved (355kW → 265kW rated power)

Technical Specifications:

Parameter	Traditional Motor	PMSM Solution	Improvement
Installed Power	355 kW	265 kW	-25.4%
Footprint	2.8 m²	1.7 m²	-39.3%
Transmission Loss	18%	0%	-100%
Maintenance Cost	$8,500/year	$1,200/year	-85.9%

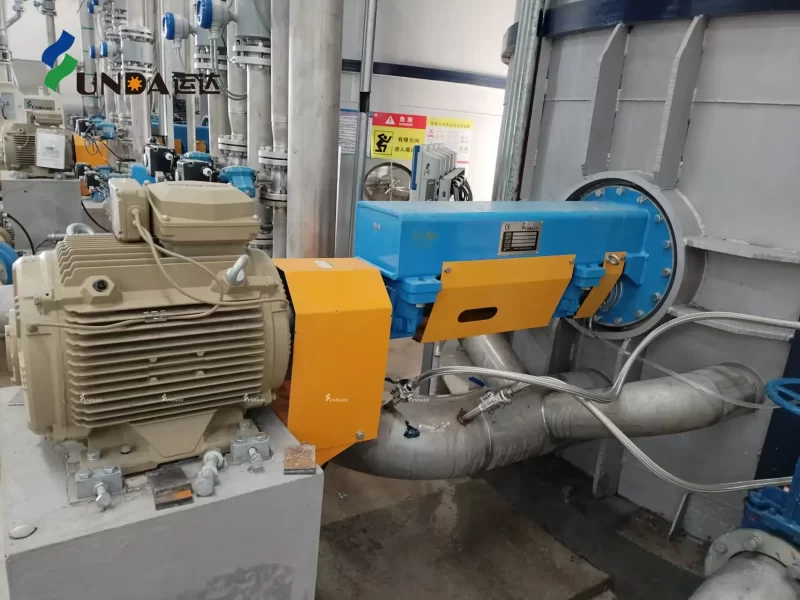

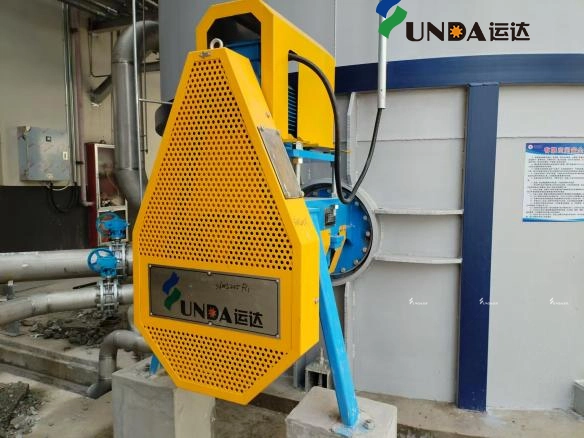

1.2 Key Advantages in Pressure Screen Applications:

1.2.1Energy Efficiency

Direct Drive Reduces Energy Consumption: Permanent magnet motors utilize a direct drive design, eliminating the need for traditional belt transmission systems. This approach not only reduces energy losses during belt transmission but also enhances overall transmission efficiency, significantly lowering energy consumption.

1.2.2 Precision Control and Flexible Adjustment

Flexible Load Adjustment Based on Pulp Level: Equipped with high-performance controllers, permanent magnet motors can monitor and adjust motor load in real-time based on changes in the pulp level within the tank. This intelligent adjustment method ensures optimal mixing performance under various operating conditions while avoiding unnecessary energy waste.

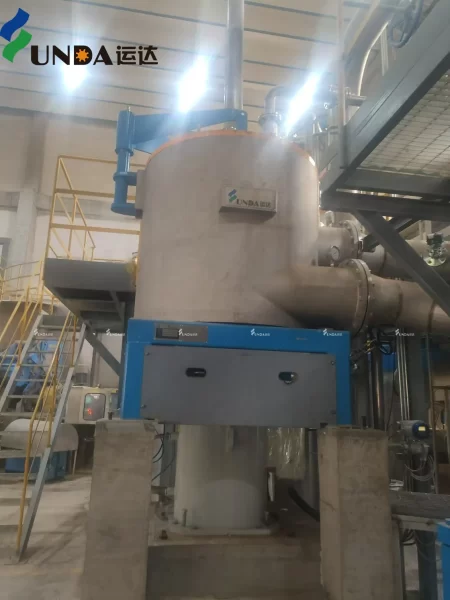

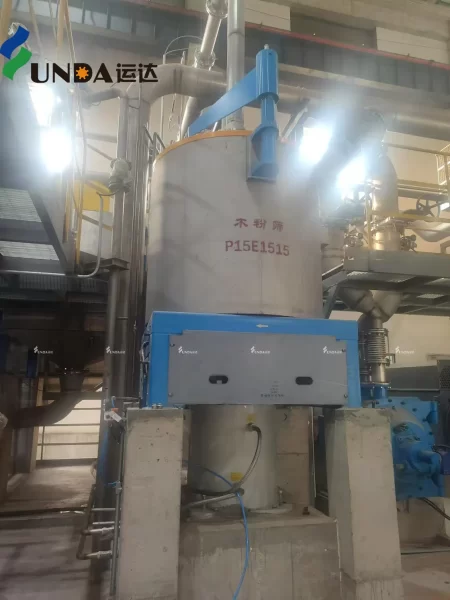

1.3 Key Advantages in Pressure Screen Applications:

1.3.1Energy Efficiency

Direct Drive Reduces Energy Consumption: Permanent magnet motors utilize a direct drive design, eliminating the need for traditional belt transmission systems. This approach not only reduces energy losses during belt transmission but also enhances overall transmission efficiency, significantly lowering energy consumption.

1.3.2 Precision Control and Flexible Adjustment

Flexible Speed Adjustment Based on Process Requirements: Equipped with high-performance controllers, permanent magnet motors can monitor and adjust motor speed in real-time based on production process requirements. This intelligent adjustment method ensures optimal pressure screening performance under various operating conditions while avoiding unnecessary energy waste.

1.3.3 Enhanced Product Quality

Optimized Screening Process: Through stable speeds and precise speed adjustments, permanent magnet motors help optimize the pulp screening process, thereby improving the quality of the final product. Precise screening removes more impurities and uneven particles, ensuring consistent paper quality.
