In wood chip pulping production, the quality of raw materials directly affects the efficiency of subsequent processes, including cooking, refining, and pulp quality control.

During actual operation, many pulp mills face a common challenge: wood chips often contain unwanted impurities such as stones, metal particles, soil, and other foreign materials. These contaminants not only reduce pulp cleanliness but also increase equipment wear and negatively affect the stability of the entire production line.

To solve this problem, more and more pulp mills are installing Wood Chip Washers in their chip preparation systems. The equipment is designed to clean wood chips before they enter the cooking or refining process.

A Wood Chip Washer mainly removes heavy impurities such as stones and metals from wood chips through hydraulic washing and separation technology. By improving chip cleanliness, it provides more stable and reliable raw materials for downstream pulping processes.

Why Is Wood Chip Washing Necessary in Pulp Production?

During the process of harvesting, transporting, and storing wood chips, various foreign materials can easily become mixed with the raw material.

Common impurities include:

• Metal fragments generated during wood processing;
• Sand and stones introduced during transportation;
• Soil and dust accumulated during outdoor storage;
• Bark and other non-fibrous materials.

If these impurities are not removed in advance, they will enter the following production processes together with the wood chips.

For pulp mills, these contaminants can cause several problems.

1. Reducing Equipment Wear

Hard particles such as stones and metal pieces can cause serious damage to downstream equipment, especially in:

• Chip conveying systems;
• Refiners;
• Screening equipment;
• Other pulp processing machines.

Continuous operation with excessive impurities can accelerate wear of internal components, increase maintenance costs, and shorten equipment service life.

2. Improving Pulp Quality

Impurities entering the pulp system can increase ash content and reduce pulp cleanliness.

For mills producing:

• High-quality packaging paper;
• Printing and writing paper;
• Specialty paper;
• High-brightness pulp;

clean raw materials are essential for maintaining stable pulp properties and final product quality.

3. Ensuring Stable Operation of Large Pulp Mills

Modern pulp mills usually operate continuously with high production capacity.

Unexpected shutdowns caused by foreign materials can reduce production efficiency and increase operating costs.

Therefore, installing reliable wood chip cleaning equipment before cooking or refining is an important step to improve production stability.

Working Principle of Wood Chip Washer

The Wood Chip Washer mainly works based on the difference in density between wood chips and impurities.

During operation, wood chips enter the washing chamber and are fully mixed with water under hydraulic force.

The water flow removes dirt, sand, and other materials attached to the surface of the chips, while heavier materials such as stones and metals settle down and are discharged through the impurity removal system.

The washing process mainly includes three steps:

1. Wood Chip Feeding

Wood chips transported from the previous process continuously enter the washer.

The internal structure of the equipment allows chips to be evenly dispersed, preventing material accumulation and improving washing efficiency.

2. Hydraulic Washing

Under the combined action of water flow and mechanical movement, contaminants attached to the wood chip surface are effectively removed.

This process not only improves chip cleanliness but also creates more uniform raw materials for subsequent pulping operations.

3. Heavy Impurity Separation

Because stones and metal particles have a higher density than wood chips, they naturally settle in the separation area.

The equipment collects and removes these heavy impurities, while cleaned wood chips continue to the next production stage.

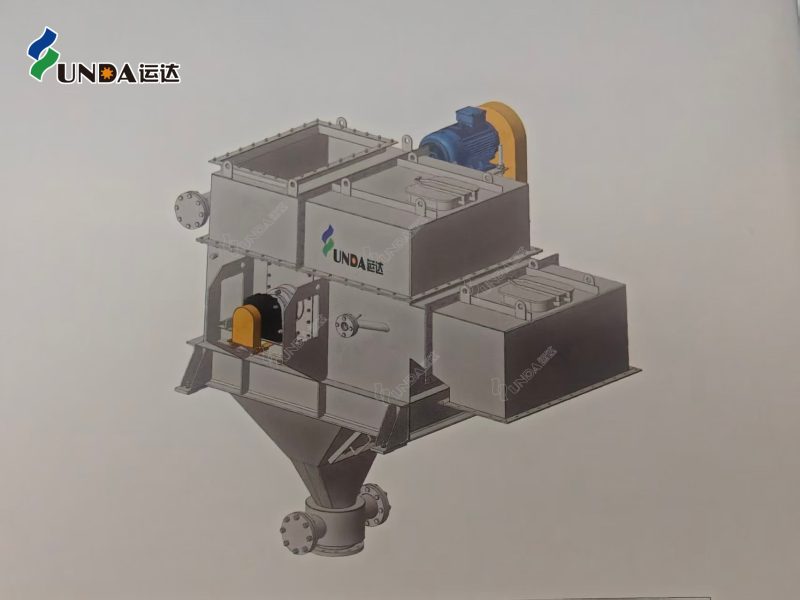

Yunda Wood Chip Washer Features

Yunda Wood Chip Washer is widely used in:

• Wood chip pulping lines;
• Bamboo pulping systems;
• CTMP/BCTMP production lines;
• Other fiber preparation systems.

According to different production capacities, Yunda provides multiple models:

• XPJ2
• XPJ4
• XPJ6
• XPJ8

These models can meet the requirements of different pulp mill production scales.

Main Technical Data

Model	Capacity	Motor Power
XPJ2	300–500 t/d	11 kW
XPJ4	500–800 t/d	15 kW
XPJ6	700–1100 t/d	22 kW
XPJ8	1000–1500 t/d	30 kW

The maximum applicable water temperature can reach 95°C, allowing the equipment to be used in certain high-temperature pulp preparation processes.

The Value of Wood Chip Washer in Large Pulp Mills

Reducing Equipment Failures and Improving Production Stability

For large-scale pulp production lines, continuous and stable operation is critical.

Without effective impurity removal, large amounts of stones and metal particles may enter the production system, causing:

• Conveyor wear;
• Refiner disc damage;
• Screen blockage;
• Increased maintenance frequency.

Installing a Wood Chip Washer at the front end of the process can effectively prevent these problems.

Improving Pulp Quality

Clean wood chips help make the pulping process more stable.

Especially in the production of:

• Premium packaging paper;
• Printing paper;
• Specialty paper;
• High-quality pulp;

raw material cleanliness has a direct influence on final product performance.

Reducing Long-Term Operating Costs

Although adding a washing process requires additional investment, a Wood Chip Washer can significantly reduce long-term costs by lowering:

• Equipment repair expenses;
• Spare part replacement frequency;
• Unplanned downtime.

For pulp mills producing hundreds or thousands of tons per day, the economic benefits are significant.

Applications of Wood Chip Washer in Pulp Production

Wood Chemical Pulp Production Line

In kraft pulp production, wood chips must be properly prepared before entering the cooking process.

Washed wood chips help:

• Reduce impurity impact;
• Improve cooking uniformity;
• Enhance pulp quality stability.

CTMP and BCTMP Production Lines

Chemical Thermo Mechanical Pulp (CTMP) and Bleached CTMP production require high-quality wood chips.

After washing, wood chips provide:

• Lower impurity content;
• More stable refining conditions;
• More uniform fiber separation.

Bamboo Pulp Production Line

Compared with wood chips, bamboo chips often contain more surface contaminants, bark, and attached impurities.

With proper process adjustment, Wood Chip Washer technology can also be applied to bamboo chip cleaning, improving the stability of bamboo pulp production.

How to Select the Right Wood Chip Washer?

Selecting the proper chip washing equipment requires consideration of several factors.

Production Capacity

The equipment model should match the pulp mill's daily production capacity.

For example:

• 300–500 t/d production lines can choose XPJ2;
• Large-scale projects above 1000 t/d can select XPJ6 or XPJ8.

Raw Material Characteristics

Wood chip quality varies depending on:

• Wood species;
• Transportation conditions;
• Storage methods;
• Environmental conditions.

For chips stored outdoors for a long time or transported over long distances, stronger cleaning capability may be required.

Pulping Process Requirements

Different processes, including:

• Kraft pulp;
• CTMP;
• BCTMP;
• Mechanical pulp;

have different requirements for chip cleanliness.

The Wood Chip Washer should be selected according to the complete process design of the pulp mill.

Yunda Wood Chip Washer: Reliable Solution for Modern Pulp Production

Yunda has been dedicated to the research, development, and manufacturing of pulp and paper machinery for many years, providing complete pulp preparation solutions for customers worldwide.

Yunda product portfolio includes:

• Wood chip preparation systems;
• Waste paper pulping systems;
• Market pulp processing systems;
• Screening and cleaning equipment;
• Refining equipment.

With extensive project experience and continuous technology improvement, Yunda equipment has been successfully applied in many pulp and paper projects worldwide.

As an important part of the chip preparation system, the Wood Chip Washer not only improves raw material cleanliness but also reduces operational risks and enhances production efficiency.

For pulp mills looking to improve production stability, reduce maintenance costs, and optimize raw material preparation, a high-performance Wood Chip Washing Machine is a reliable and valuable investment.
