Compartment Bin Feeder: An Efficient Feeding and Steam Sealing Solution for Modern Pulp Mills

Why Is a Reliable Feeding System Important in Pulp Production?

In modern pulp and paper production, stable material feeding is essential for maintaining production efficiency, reducing energy consumption, and protecting upstream equipment.

One common challenge faced by many mills is steam backflow. Uncontrolled steam leakage not only affects workplace cleanliness but can also increase equipment wear and create unnecessary energy losses.

A well-designed feeding system can solve these problems while improving overall process stability.

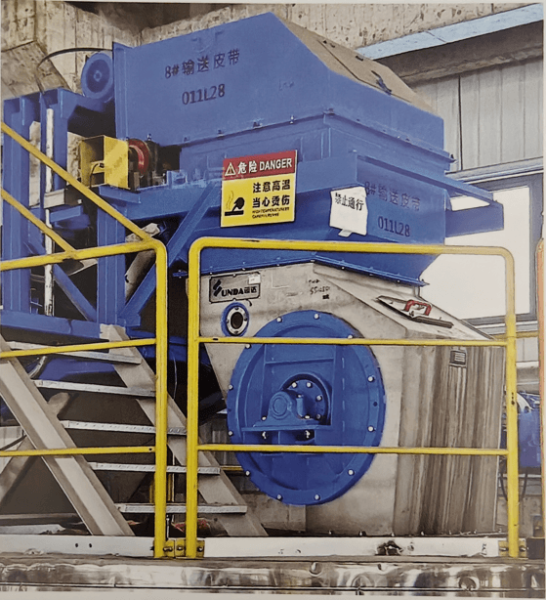

The Yunda Compartment Bin Feeder is specifically developed to combine accurate material feeding with atmospheric steam sealing functions, providing a safer and more efficient operating environment for pulp mills.

What Is a Compartment Bin Feeder?

A Compartment Bin Feeder is a specialized feeding device designed to continuously transfer pulp materials while simultaneously preventing steam from flowing backward through the system.

Unlike conventional feeding equipment, this design serves two functions in a single machine:

• Continuous material feeding
• Atmospheric steam sealing

This dual-function design effectively isolates steam within the process system, reducing leakage and protecting upstream equipment from excessive thermal exposure.

How Does the Compartment Bin Feeder Work?

The equipment uses a compartmented feeding structure that transports material in a controlled and continuous manner.

During operation:

1. Pulp material enters the feeder.
2. The compartment structure transports the material forward.
3. The sealed compartments create a physical barrier against steam migration.
4. Steam backflow and external leakage are significantly reduced.

This process helps maintain pressure balance while ensuring stable production conditions.

Key Advantages of the Yunda Compartment Bin Feeder

Effective Steam Sealing Performance

Steam backflow is a common issue in many pulp processing systems. The Yunda Compartment Bin Feeder effectively blocks steam leakage and prevents steam from entering upstream equipment.

This improves operational safety and helps maintain a cleaner workshop environment.

Compact Structure and Small Footprint

Space utilization is becoming increasingly important in both new projects and mill upgrade projects.

The compact design allows the feeder to be easily integrated into existing production lines without requiring large installation areas.

High Efficiency with Lower Energy Consumption

Optimized mechanical design enables efficient material transfer while reducing unnecessary energy usage.

This helps manufacturers lower operating costs and improve overall production efficiency.

Strong Adaptability

The equipment can handle various raw material conditions and easily adapt to different production requirements.

Its flexible adjustment capability allows operators to optimize performance according to process demands.

Easy Maintenance

Maintenance accessibility is an important consideration for continuous industrial production.

The feeder is designed for convenient inspection and servicing, helping reduce downtime and simplify routine maintenance tasks.

Applications of Compartment Bin Feeders

Compartment Bin Feeders are widely used in pulp preparation systems and paper manufacturing plants.

Typical applications include:

• Commercial pulp preparation lines
• OCC recycling systems
• Pulping systems
• Stock preparation systems
• Paper mill feeding systems
• Fiber processing lines

They are particularly suitable for processes where steam isolation and stable material feeding are both required.

Technical Specifications

Item	Specification
Model	GCWL
Material Moisture Content	≥35%
Material Size	Length < 50 mm, Width < 20 mm, Thickness < 8
Capacity	≤280 m³/h

Actual capacity may vary depending on material properties and process conditions.

Why Choose Yunda Compartment Bin Feeders?

For pulp and paper manufacturers, production stability directly impacts operating costs and product quality.

A feeding system should do more than simply transport material. It should also improve energy efficiency, protect equipment, and create a safer production environment.

By integrating feeding and atmospheric steam sealing into one compact unit, the Yunda Compartment Bin Feeder offers an effective solution for modern pulp processing plants.

Whether for new installations or existing production line upgrades, this equipment can help mills improve reliability, reduce energy waste, and maintain long-term operational efficiency.
