Chip Bin / Steaming Bin Discharger: Ensure Uniform Chip Flow and Efficient Steaming for Pulp Production

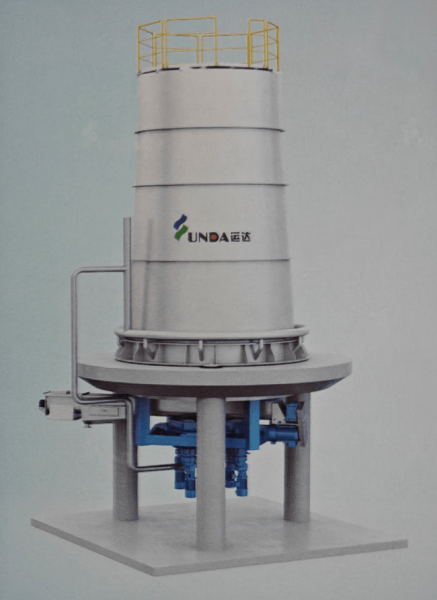

What Is a Chip Bin / Steaming Bin Discharger?

A Chip Bin / Steaming Bin Discharger is a critical piece of equipment used in modern pulp mills to ensure the continuous and uniform discharge of wood chips, bamboo chips, and other lignocellulosic raw materials after steaming and softening. It is widely applied in chemical pulping, mechanical pulping, CTMP, and other fiber preparation processes.

The steaming bin allows raw materials to be heated evenly with steam before refining or cooking, while the bottom discharger and discharge screws ensure a stable material flow to downstream equipment. This not only improves production efficiency but also prevents common operating issues such as material bridging and uneven chip discharge.

Why Is Uniform Steaming Important?

During the steaming process, chips must reach a consistent temperature and moisture content before entering the next processing stage. Uneven heating can result in:

• Inconsistent fiber quality
• Increased refining energy consumption
• Reduced pulp yield
• Unstable downstream production
• Higher operating costs

To address this challenge, Yunda has developed a patented central steam injection system that significantly improves steam distribution throughout the chip bin.

Yunda's Patented Central Steam Injection Technology

Traditional steaming bins often suffer from uneven steam distribution. Steam mainly enters from the outer area of the bin, causing chips near the wall to reach the desired temperature while chips in the center remain insufficiently heated.

Yunda's patented central steam injection device solves this problem by delivering steam directly into the core of the material column. As a result:

• Uniform temperature distribution throughout the entire chip bed
• Better chip softening performance
• Improved refining efficiency
• Reduced energy consumption
• Higher pulp quality consistency

This innovative design helps eliminate one of the most common operational challenges in chip steaming systems.

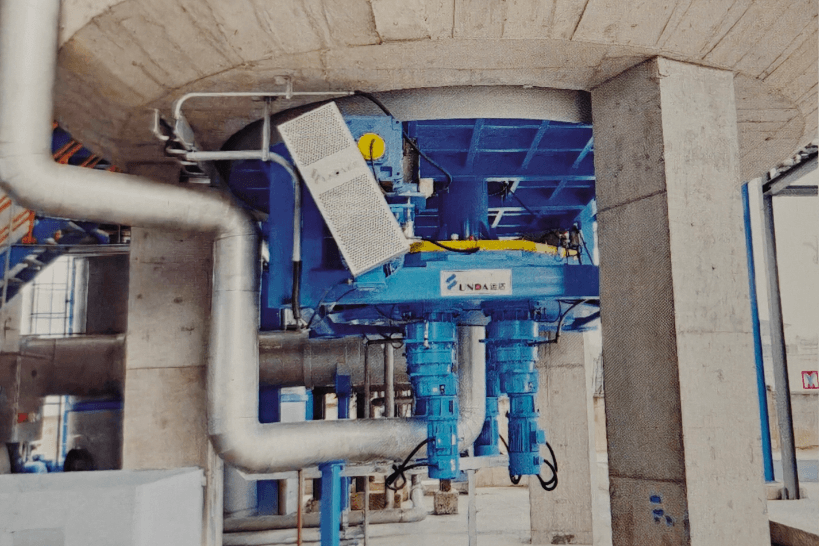

Reliable Bottom Discharging Without Bridging

Material bridging is a frequent problem in large chip bins, especially when handling moist wood chips or bamboo chips.

Yunda's Chip Bin / Steaming Bin Discharger features specially designed bottom dischargers and discharge screws that:

• Ensure uniform chip movement across every horizontal section of the bin
• Prevent material bridging and blockage
• Maintain continuous discharge without interruption
• Deliver chips steadily to downstream equipment according to the required production capacity

The discharge screw provides precise and constant feeding, helping maintain stable operation throughout the production line.

Applications

Yunda Chip Bin / Steaming Bin Dischargers are suitable for processing:

• Wood chips
• Bamboo chips
• Hardwood chips
• Softwood chips
• Mixed biomass raw materials

They are widely used in:

• Kraft pulp mills
• Mechanical pulping lines
• CTMP production lines
• High-yield pulping systems
• Fiber preparation systems

Technical Specifications

Model	QZC36	QZC43	QZC50
Diameter (m)	3.6	4.3	5.0
Height (m)	4–8	5–10	6–12
Capacity (t/d)	200–500	500–1000	1000–1500
Motor Power (kW)	3 × 7.5 + 37	4 × 7.5 + 2 × 37	6 × 7.5 + 2 × 37

Customized dimensions and capacities are also available to meet specific project requirements.

Advantages of Yunda Chip Bin / Steaming Bin Discharger

Compared with conventional equipment, Yunda offers several key advantages:

• Patented central steam injection technology
• Uniform steaming throughout the chip column
• Effective prevention of material bridging
• Stable and continuous chip discharge
• Precise feeding to downstream processes
• High operational reliability
• Low maintenance requirements
• Suitable for medium and large-capacity pulp mills
• Custom-designed solutions for different raw materials and production capacities

Why Choose Yunda?

With over 40 years of experience in pulp preparation technology, Yunda supplies complete stock preparation and pulping systems to customers worldwide. Our engineering team focuses on improving production efficiency, reducing energy consumption, and delivering reliable equipment for modern pulp mills.

From process design and equipment manufacturing to installation and commissioning, Yunda provides comprehensive solutions tailored to each customer's production requirements.

Conclusion

A reliable Chip Bin / Steaming Bin Discharger is essential for maintaining stable pulp production and achieving consistent fiber quality. Yunda's patented central steam injection technology, combined with its advanced bottom discharging system, ensures uniform chip steaming, prevents bridging, and delivers continuous, stable feeding for downstream processing.

Whether you are building a new pulp production line or upgrading an existing system, Yunda can provide customized Chip Bin and Steaming Bin solutions to maximize productivity and improve overall mill performance.
