Refiner Disc: Structure, Working Principle, and High-Performance Replaceable Design

What Is a Refiner Disc?

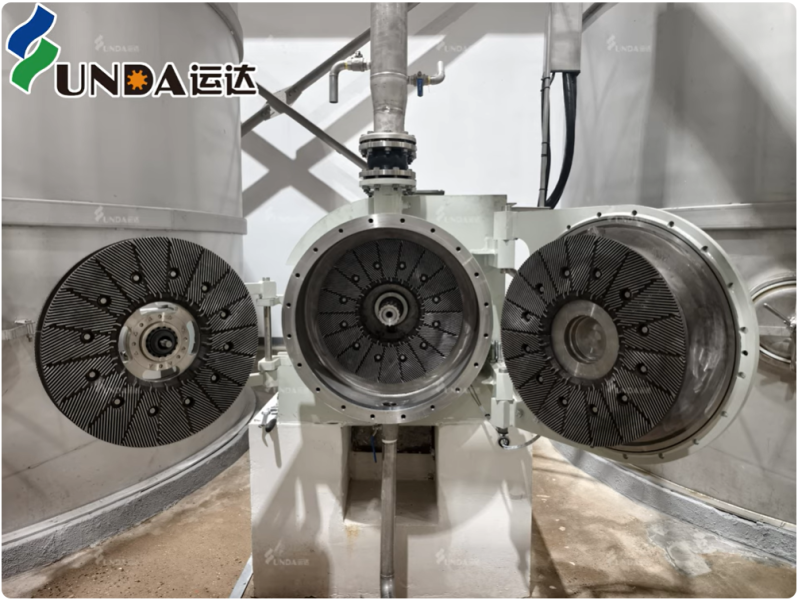

A refiner disc (also known as a refiner plate) is one of the most critical components in the pulp refining process. Installed inside disc refiners, it is responsible for treating fibers before they enter the papermaking stage.

During operation, pulp passes between two discs—either one rotating and one stationary, or both rotating. The specially designed bar and groove patterns on the disc surface apply mechanical forces to the fibers, improving their bonding ability and ultimately enhancing paper quality.

In simple terms, the performance of the refiner disc directly determines the final paper properties.

How Does a Refiner Disc Work?

The refining process is based on controlled mechanical action:

Pulp enters from the center of the discs
Centrifugal force pushes it outward
Fibers pass through patterned bar zones
They are subjected to cutting, compression, and fibrillation

This process modifies fiber characteristics, leading to:

Better fiber bonding
Improved tensile and burst strength
More uniform sheet formation

That’s why refining is often considered one of the most decisive steps in pulp processing.

Key Design Features of a Refiner Disc

Precision Bar Patterns

Different refining stages require different plate designs:

Coarse patterns for initial fiber treatment
Medium patterns for balanced refining
Fine patterns for final strength development

The right pattern ensures efficient energy use and optimal fiber quality.

High-Performance Materials

A high-quality refiner disc must withstand extreme conditions. Typical materials include:

Alloy steel
Stainless steel
Wear-resistant cast materials

The goal is to achieve the perfect balance of:

Wear resistance
Impact strength
Corrosion resistance

Common Problems with Traditional Refiner Discs

Many conventional refiner discs still present operational challenges:

Complicated and time-consuming replacement
Heavy weight, difficult handling
Uneven wear and shorter service life
High energy consumption

These issues lead to increased downtime, higher costs, and inconsistent production quality.

Our Refiner Disc Advantages

✔ Quick and Easy Replacement

Our refiner discs are designed with a quick-change system that allows:

Fast installation and removal
Reduced downtime
Improved production continuity

Less downtime means more output—simple as that.

✔ Segment Design for Flexible Replacement

Instead of replacing the entire disc, our design allows individual segments to be replaced:

Only worn parts need replacement
Lower spare part costs
Higher utilization efficiency

This modular approach significantly reduces long-term operating expenses.

✔ Superior Material for Longer Service Life

We use advanced alloy materials engineered for:

Excellent wear resistance
Strong impact resistance
Reliable performance with recycled fibers

The result is a longer lifespan and more stable operation compared to standard discs.

✔ Lightweight and Maintenance-Friendly

Compared to traditional cast discs, our design is:

Lighter in weight
Easier to handle
Safer and faster to install

This makes routine maintenance much more efficient.

✔ Energy-Efficient Performance

Optimized bar patterns and flow channels help to:

Increase effective fiber treatment
Reduce unnecessary energy loss
Improve refining efficiency per ton

You get better results with lower energy consumption.

✔ Optimized Pulp Flow Design

Our discs are engineered to ensure:

Even pulp distribution
Reduced clogging
Stable refining performance

This leads to more consistent paper quality.

Applications

Our refiner discs are widely used in:

Tissue production
Packaging paper (OCC, kraft)
Printing and writing paper
Specialty paper

They are compatible with:

Double disc refiners
Tri-disc refiners
Various pulp refining systems

Why Choosing the Right Refiner Disc Matters

Refining is a non-reversible process—once fibers are damaged, they cannot be restored.

That’s why investing in a high-quality refiner disc is essential. It directly impacts:

Paper strength and quality
Energy consumption
Overall production efficiency

Conclusion

A refiner disc is more than just a wear part—it’s a key factor in the performance of your entire pulp line.

With features like:

Quick replacement design
Replaceable segment structure
High-performance materials
Energy-efficient patterns

You can achieve:

Lower operating costs
Higher productivity
More stable paper quality
