Structure and Principle

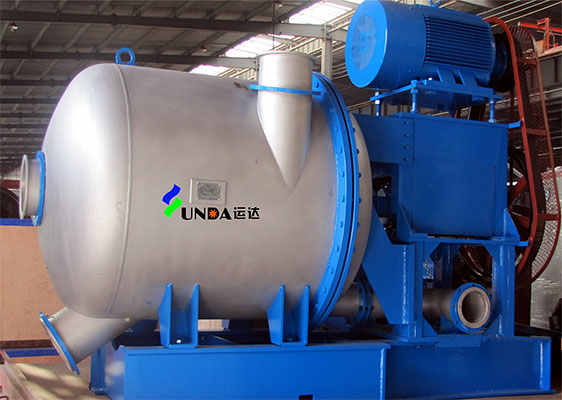

This equipment is composed of front cover, machine casing, rotor device, foundation and transmission device, etc.
Pulp inlet pipe and heavy rejects outlet pipe are set on front cover. Light rejects outlet pipe is set on the front side of machine casing, flange at the end linked with the accept plate in rotor device and soleplates at two sides are linked to the foundation.
Rotor device is mainly composed of rotor, accessory shaft, accept plate, screen plate device, bearing seat, transmission bracket, grand V belt wheel, etc. Rotor is made of wearable cast steel and adjustable bolts are equipped on the rotor device to adjust the gap between screen plate and rotor.
The foundation is used for bearing the machine case and transmission device. The transmission device consists of motor, small V belt wheel, motor bracket and V belt.
Technical Parameter
| Model |
ZSF1
|
ZSF2 |
ZSF3 |
| Nominal Volume (m3) |
1.2 |
3 |
5 |
| Consistency (%) |
2-5 |
| Capacity (T/D) |
15-45 |
40-120 |
60-150 |
| Motor Power (kW) |
45 |
75 |
160 |
